  • UF-150 GENECHECKER™
  • UF-150 GENECHECKER™
  • UF-150 GENECHECKER™
  • UF-150 GENECHECKER™
PCR machine for molecular diagnostic testing in medical purpose

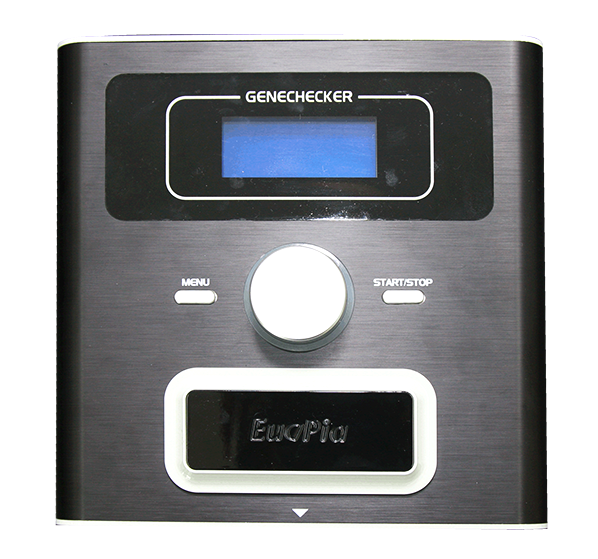

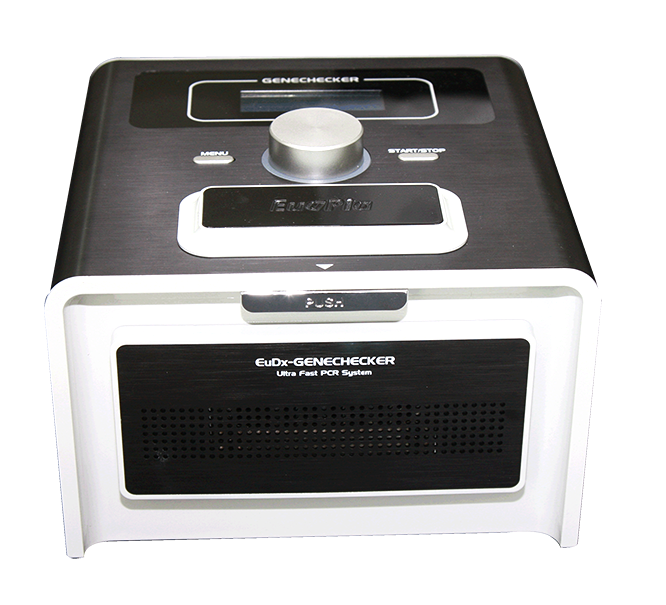

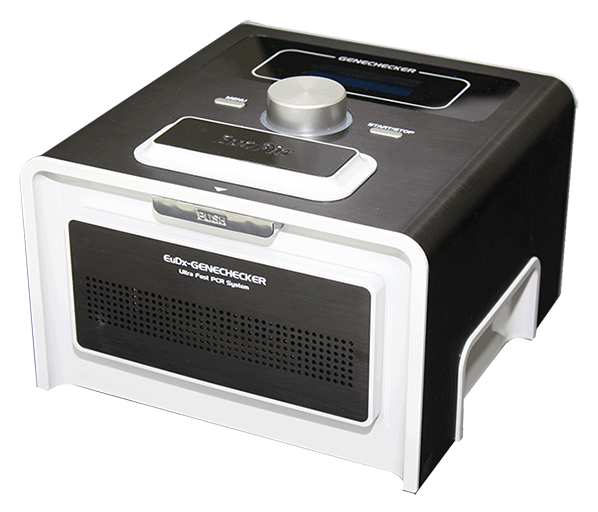

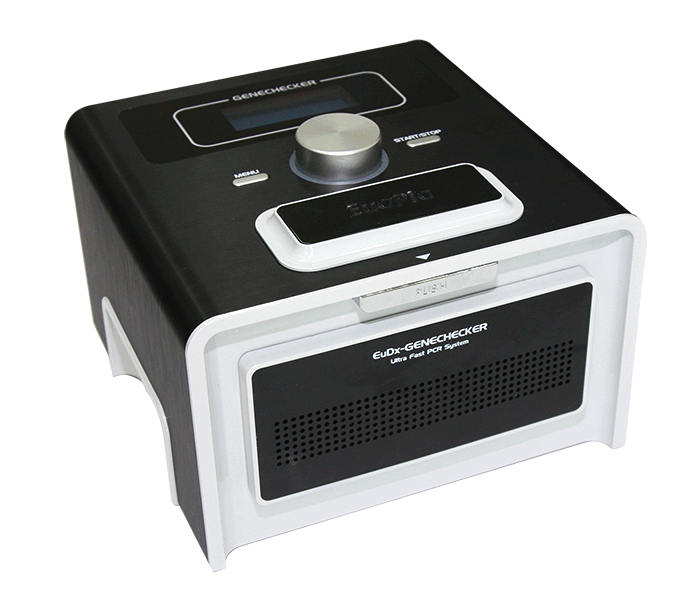

EuDx™ GENECHECKER

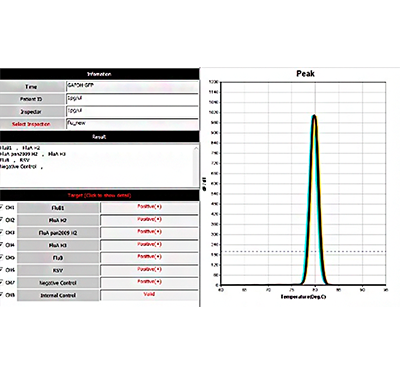

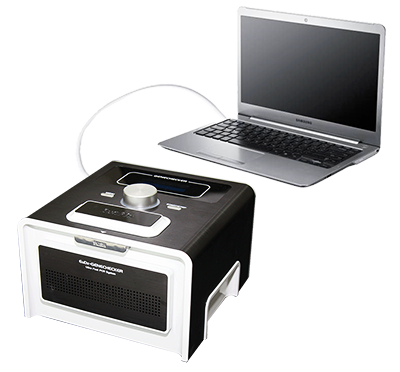

EuDx™ Recorder
Eudipia’s dedicated optimized software for medical device
Time saving
PCR result in less than 30 minutes
Simple interface
Provide optimized setting option
Portable size
Maximize lab area in laboratory
ITEMS DESCRIPTION
Well Volume 10 μL
PCR Time 30 minutes
Necessity of Electrophoresis No (Instant Qualitative Analysis)
Display Text LCD (4 Lines)
Integrated Memory Saves up to 12 Custom Protocols
Power AC 100-230V / 50-60 Hz (Input Power : DC 12V)
Power Consumption 70 W
Physical Specification Dimension : 200(w) x 200(d) x 125(h), Weight : 3.2 kg
DESCRIPTION Precise Control of Peltier Element
Temperature Accuracy ± 0.5°C
Well to Well Temperature Uniformity ± 0.5°C
Temperature Stability ± 0.5°C
Ramp up Speed 8.0 °C / second
Ramp down Speed 8.0 °C / second
Range of Temperature Setting 20 ~ 99 °C (1.0°C Increment)

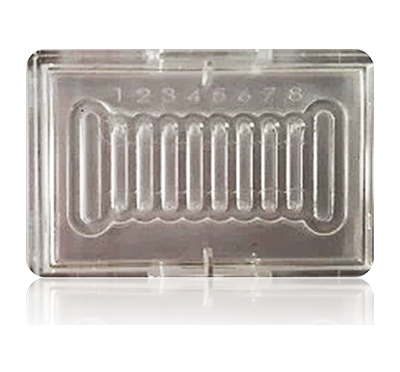

Type of Sample Block Polymer Based 3-Dimensional Chip
Number Channels 8
